| #include "stdlib.h" #include "ctype.h" #include "stdio.h" #include "string.h"
typedef unsigned char uint8_t; typedef unsigned int uint32_t;
#define SM4_ENCRYPT 1 #define SM4_DECRYPT 0
#define SM4_BLOCK_SIZE 16 #define SM4_KEY_SCHEDULE 32
typedef struct SM4_KEY_st { uint32_t rk[SM4_KEY_SCHEDULE]; } SM4_KEY;
static const uint8_t SM4_S[256] = { 0xD6, 0x90, 0xE9, 0xFE, 0xCC, 0xE1, 0x3D, 0xB7, 0x16, 0xB6, 0x14, 0xC2, 0x28, 0xFB, 0x2C, 0x05, 0x2B, 0x67, 0x9A, 0x76, 0x2A, 0xBE, 0x04, 0xC3, 0xAA, 0x44, 0x13, 0x26, 0x49, 0x86, 0x06, 0x99, 0x9C, 0x42, 0x50, 0xF4, 0x91, 0xEF, 0x98, 0x7A, 0x33, 0x54, 0x0B, 0x43, 0xED, 0xCF, 0xAC, 0x62, 0xE4, 0xB3, 0x1C, 0xA9, 0xC9, 0x08, 0xE8, 0x95, 0x80, 0xDF, 0x94, 0xFA, 0x75, 0x8F, 0x3F, 0xA6, 0x47, 0x07, 0xA7, 0xFC, 0xF3, 0x73, 0x17, 0xBA, 0x83, 0x59, 0x3C, 0x19, 0xE6, 0x85, 0x4F, 0xA8, 0x68, 0x6B, 0x81, 0xB2, 0x71, 0x64, 0xDA, 0x8B, 0xF8, 0xEB, 0x0F, 0x4B, 0x70, 0x56, 0x9D, 0x35, 0x1E, 0x24, 0x0E, 0x5E, 0x63, 0x58, 0xD1, 0xA2, 0x25, 0x22, 0x7C, 0x3B, 0x01, 0x21, 0x78, 0x87, 0xD4, 0x00, 0x46, 0x57, 0x9F, 0xD3, 0x27, 0x52, 0x4C, 0x36, 0x02, 0xE7, 0xA0, 0xC4, 0xC8, 0x9E, 0xEA, 0xBF, 0x8A, 0xD2, 0x40, 0xC7, 0x38, 0xB5, 0xA3, 0xF7, 0xF2, 0xCE, 0xF9, 0x61, 0x15, 0xA1, 0xE0, 0xAE, 0x5D, 0xA4, 0x9B, 0x34, 0x1A, 0x55, 0xAD, 0x93, 0x32, 0x30, 0xF5, 0x8C, 0xB1, 0xE3, 0x1D, 0xF6, 0xE2, 0x2E, 0x82, 0x66, 0xCA, 0x60, 0xC0, 0x29, 0x23, 0xAB, 0x0D, 0x53, 0x4E, 0x6F, 0xD5, 0xDB, 0x37, 0x45, 0xDE, 0xFD, 0x8E, 0x2F, 0x03, 0xFF, 0x6A, 0x72, 0x6D, 0x6C, 0x5B, 0x51, 0x8D, 0x1B, 0xAF, 0x92, 0xBB, 0xDD, 0xBC, 0x7F, 0x11, 0xD9, 0x5C, 0x41, 0x1F, 0x10, 0x5A, 0xD8, 0x0A, 0xC1, 0x31, 0x88, 0xA5, 0xCD, 0x7B, 0xBD, 0x2D, 0x74, 0xD0, 0x12, 0xB8, 0xE5, 0xB4, 0xB0, 0x89, 0x69, 0x97, 0x4A, 0x0C, 0x96, 0x77, 0x7E, 0x65, 0xB9, 0xF1, 0x09, 0xC5, 0x6E, 0xC6, 0x84, 0x18, 0xF0, 0x7D, 0xEC, 0x3A, 0xDC, 0x4D, 0x20, 0x79, 0xEE, 0x5F, 0x3E, 0xD7, 0xCB, 0x39, 0x48};
static const uint32_t SM4_SBOX_T0[256] = { 0x8ED55B5B, 0xD0924242, 0x4DEAA7A7, 0x06FDFBFB, 0xFCCF3333, 0x65E28787, 0xC93DF4F4, 0x6BB5DEDE, 0x4E165858, 0x6EB4DADA, 0x44145050, 0xCAC10B0B, 0x8828A0A0, 0x17F8EFEF, 0x9C2CB0B0, 0x11051414, 0x872BACAC, 0xFB669D9D, 0xF2986A6A, 0xAE77D9D9, 0x822AA8A8, 0x46BCFAFA, 0x14041010, 0xCFC00F0F, 0x02A8AAAA, 0x54451111, 0x5F134C4C, 0xBE269898, 0x6D482525, 0x9E841A1A, 0x1E061818, 0xFD9B6666, 0xEC9E7272, 0x4A430909, 0x10514141, 0x24F7D3D3, 0xD5934646, 0x53ECBFBF, 0xF89A6262, 0x927BE9E9, 0xFF33CCCC, 0x04555151, 0x270B2C2C, 0x4F420D0D, 0x59EEB7B7, 0xF3CC3F3F, 0x1CAEB2B2, 0xEA638989, 0x74E79393, 0x7FB1CECE, 0x6C1C7070, 0x0DABA6A6, 0xEDCA2727, 0x28082020, 0x48EBA3A3, 0xC1975656, 0x80820202, 0xA3DC7F7F, 0xC4965252, 0x12F9EBEB, 0xA174D5D5, 0xB38D3E3E, 0xC33FFCFC, 0x3EA49A9A, 0x5B461D1D, 0x1B071C1C, 0x3BA59E9E, 0x0CFFF3F3, 0x3FF0CFCF, 0xBF72CDCD, 0x4B175C5C, 0x52B8EAEA, 0x8F810E0E, 0x3D586565, 0xCC3CF0F0, 0x7D196464, 0x7EE59B9B, 0x91871616, 0x734E3D3D, 0x08AAA2A2, 0xC869A1A1, 0xC76AADAD, 0x85830606, 0x7AB0CACA, 0xB570C5C5, 0xF4659191, 0xB2D96B6B, 0xA7892E2E, 0x18FBE3E3, 0x47E8AFAF, 0x330F3C3C, 0x674A2D2D, 0xB071C1C1, 0x0E575959, 0xE99F7676, 0xE135D4D4, 0x661E7878, 0xB4249090, 0x360E3838, 0x265F7979, 0xEF628D8D, 0x38596161, 0x95D24747, 0x2AA08A8A, 0xB1259494, 0xAA228888, 0x8C7DF1F1, 0xD73BECEC, 0x05010404, 0xA5218484, 0x9879E1E1, 0x9B851E1E, 0x84D75353, 0x00000000, 0x5E471919, 0x0B565D5D, 0xE39D7E7E, 0x9FD04F4F, 0xBB279C9C, 0x1A534949, 0x7C4D3131, 0xEE36D8D8, 0x0A020808, 0x7BE49F9F, 0x20A28282, 0xD4C71313, 0xE8CB2323, 0xE69C7A7A, 0x42E9ABAB, 0x43BDFEFE, 0xA2882A2A, 0x9AD14B4B, 0x40410101, 0xDBC41F1F, 0xD838E0E0, 0x61B7D6D6, 0x2FA18E8E, 0x2BF4DFDF, 0x3AF1CBCB, 0xF6CD3B3B, 0x1DFAE7E7, 0xE5608585, 0x41155454, 0x25A38686, 0x60E38383, 0x16ACBABA, 0x295C7575, 0x34A69292, 0xF7996E6E, 0xE434D0D0, 0x721A6868, 0x01545555, 0x19AFB6B6, 0xDF914E4E, 0xFA32C8C8, 0xF030C0C0, 0x21F6D7D7, 0xBC8E3232, 0x75B3C6C6, 0x6FE08F8F, 0x691D7474, 0x2EF5DBDB, 0x6AE18B8B, 0x962EB8B8, 0x8A800A0A, 0xFE679999, 0xE2C92B2B, 0xE0618181, 0xC0C30303, 0x8D29A4A4, 0xAF238C8C, 0x07A9AEAE, 0x390D3434, 0x1F524D4D, 0x764F3939, 0xD36EBDBD, 0x81D65757, 0xB7D86F6F, 0xEB37DCDC, 0x51441515, 0xA6DD7B7B, 0x09FEF7F7, 0xB68C3A3A, 0x932FBCBC, 0x0F030C0C, 0x03FCFFFF, 0xC26BA9A9, 0xBA73C9C9, 0xD96CB5B5, 0xDC6DB1B1, 0x375A6D6D, 0x15504545, 0xB98F3636, 0x771B6C6C, 0x13ADBEBE, 0xDA904A4A, 0x57B9EEEE, 0xA9DE7777, 0x4CBEF2F2, 0x837EFDFD, 0x55114444, 0xBDDA6767, 0x2C5D7171, 0x45400505, 0x631F7C7C, 0x50104040, 0x325B6969, 0xB8DB6363, 0x220A2828, 0xC5C20707, 0xF531C4C4, 0xA88A2222, 0x31A79696, 0xF9CE3737, 0x977AEDED, 0x49BFF6F6, 0x992DB4B4, 0xA475D1D1, 0x90D34343, 0x5A124848, 0x58BAE2E2, 0x71E69797, 0x64B6D2D2, 0x70B2C2C2, 0xAD8B2626, 0xCD68A5A5, 0xCB955E5E, 0x624B2929, 0x3C0C3030, 0xCE945A5A, 0xAB76DDDD, 0x867FF9F9, 0xF1649595, 0x5DBBE6E6, 0x35F2C7C7, 0x2D092424, 0xD1C61717, 0xD66FB9B9, 0xDEC51B1B, 0x94861212, 0x78186060, 0x30F3C3C3, 0x897CF5F5, 0x5CEFB3B3, 0xD23AE8E8, 0xACDF7373, 0x794C3535, 0xA0208080, 0x9D78E5E5, 0x56EDBBBB, 0x235E7D7D, 0xC63EF8F8, 0x8BD45F5F, 0xE7C82F2F, 0xDD39E4E4, 0x68492121 };
static uint32_t SM4_SBOX_T1[256] = { 0x5B8ED55B, 0x42D09242, 0xA74DEAA7, 0xFB06FDFB, 0x33FCCF33, 0x8765E287, 0xF4C93DF4, 0xDE6BB5DE, 0x584E1658, 0xDA6EB4DA, 0x50441450, 0x0BCAC10B, 0xA08828A0, 0xEF17F8EF, 0xB09C2CB0, 0x14110514, 0xAC872BAC, 0x9DFB669D, 0x6AF2986A, 0xD9AE77D9, 0xA8822AA8, 0xFA46BCFA, 0x10140410, 0x0FCFC00F, 0xAA02A8AA, 0x11544511, 0x4C5F134C, 0x98BE2698, 0x256D4825, 0x1A9E841A, 0x181E0618, 0x66FD9B66, 0x72EC9E72, 0x094A4309, 0x41105141, 0xD324F7D3, 0x46D59346, 0xBF53ECBF, 0x62F89A62, 0xE9927BE9, 0xCCFF33CC, 0x51045551, 0x2C270B2C, 0x0D4F420D, 0xB759EEB7, 0x3FF3CC3F, 0xB21CAEB2, 0x89EA6389, 0x9374E793, 0xCE7FB1CE, 0x706C1C70, 0xA60DABA6, 0x27EDCA27, 0x20280820, 0xA348EBA3, 0x56C19756, 0x02808202, 0x7FA3DC7F, 0x52C49652, 0xEB12F9EB, 0xD5A174D5, 0x3EB38D3E, 0xFCC33FFC, 0x9A3EA49A, 0x1D5B461D, 0x1C1B071C, 0x9E3BA59E, 0xF30CFFF3, 0xCF3FF0CF, 0xCDBF72CD, 0x5C4B175C, 0xEA52B8EA, 0x0E8F810E, 0x653D5865, 0xF0CC3CF0, 0x647D1964, 0x9B7EE59B, 0x16918716, 0x3D734E3D, 0xA208AAA2, 0xA1C869A1, 0xADC76AAD, 0x06858306, 0xCA7AB0CA, 0xC5B570C5, 0x91F46591, 0x6BB2D96B, 0x2EA7892E, 0xE318FBE3, 0xAF47E8AF, 0x3C330F3C, 0x2D674A2D, 0xC1B071C1, 0x590E5759, 0x76E99F76, 0xD4E135D4, 0x78661E78, 0x90B42490, 0x38360E38, 0x79265F79, 0x8DEF628D, 0x61385961, 0x4795D247, 0x8A2AA08A, 0x94B12594, 0x88AA2288, 0xF18C7DF1, 0xECD73BEC, 0x04050104, 0x84A52184, 0xE19879E1, 0x1E9B851E, 0x5384D753, 0x00000000, 0x195E4719, 0x5D0B565D, 0x7EE39D7E, 0x4F9FD04F, 0x9CBB279C, 0x491A5349, 0x317C4D31, 0xD8EE36D8, 0x080A0208, 0x9F7BE49F, 0x8220A282, 0x13D4C713, 0x23E8CB23, 0x7AE69C7A, 0xAB42E9AB, 0xFE43BDFE, 0x2AA2882A, 0x4B9AD14B, 0x01404101, 0x1FDBC41F, 0xE0D838E0, 0xD661B7D6, 0x8E2FA18E, 0xDF2BF4DF, 0xCB3AF1CB, 0x3BF6CD3B, 0xE71DFAE7, 0x85E56085, 0x54411554, 0x8625A386, 0x8360E383, 0xBA16ACBA, 0x75295C75, 0x9234A692, 0x6EF7996E, 0xD0E434D0, 0x68721A68, 0x55015455, 0xB619AFB6, 0x4EDF914E, 0xC8FA32C8, 0xC0F030C0, 0xD721F6D7, 0x32BC8E32, 0xC675B3C6, 0x8F6FE08F, 0x74691D74, 0xDB2EF5DB, 0x8B6AE18B, 0xB8962EB8, 0x0A8A800A, 0x99FE6799, 0x2BE2C92B, 0x81E06181, 0x03C0C303, 0xA48D29A4, 0x8CAF238C, 0xAE07A9AE, 0x34390D34, 0x4D1F524D, 0x39764F39, 0xBDD36EBD, 0x5781D657, 0x6FB7D86F, 0xDCEB37DC, 0x15514415, 0x7BA6DD7B, 0xF709FEF7, 0x3AB68C3A, 0xBC932FBC, 0x0C0F030C, 0xFF03FCFF, 0xA9C26BA9, 0xC9BA73C9, 0xB5D96CB5, 0xB1DC6DB1, 0x6D375A6D, 0x45155045, 0x36B98F36, 0x6C771B6C, 0xBE13ADBE, 0x4ADA904A, 0xEE57B9EE, 0x77A9DE77, 0xF24CBEF2, 0xFD837EFD, 0x44551144, 0x67BDDA67, 0x712C5D71, 0x05454005, 0x7C631F7C, 0x40501040, 0x69325B69, 0x63B8DB63, 0x28220A28, 0x07C5C207, 0xC4F531C4, 0x22A88A22, 0x9631A796, 0x37F9CE37, 0xED977AED, 0xF649BFF6, 0xB4992DB4, 0xD1A475D1, 0x4390D343, 0x485A1248, 0xE258BAE2, 0x9771E697, 0xD264B6D2, 0xC270B2C2, 0x26AD8B26, 0xA5CD68A5, 0x5ECB955E, 0x29624B29, 0x303C0C30, 0x5ACE945A, 0xDDAB76DD, 0xF9867FF9, 0x95F16495, 0xE65DBBE6, 0xC735F2C7, 0x242D0924, 0x17D1C617, 0xB9D66FB9, 0x1BDEC51B, 0x12948612, 0x60781860, 0xC330F3C3, 0xF5897CF5, 0xB35CEFB3, 0xE8D23AE8, 0x73ACDF73, 0x35794C35, 0x80A02080, 0xE59D78E5, 0xBB56EDBB, 0x7D235E7D, 0xF8C63EF8, 0x5F8BD45F, 0x2FE7C82F, 0xE4DD39E4, 0x21684921 };
static uint32_t SM4_SBOX_T2[256] = { 0x5B5B8ED5, 0x4242D092, 0xA7A74DEA, 0xFBFB06FD, 0x3333FCCF, 0x878765E2, 0xF4F4C93D, 0xDEDE6BB5, 0x58584E16, 0xDADA6EB4, 0x50504414, 0x0B0BCAC1, 0xA0A08828, 0xEFEF17F8, 0xB0B09C2C, 0x14141105, 0xACAC872B, 0x9D9DFB66, 0x6A6AF298, 0xD9D9AE77, 0xA8A8822A, 0xFAFA46BC, 0x10101404, 0x0F0FCFC0, 0xAAAA02A8, 0x11115445, 0x4C4C5F13, 0x9898BE26, 0x25256D48, 0x1A1A9E84, 0x18181E06, 0x6666FD9B, 0x7272EC9E, 0x09094A43, 0x41411051, 0xD3D324F7, 0x4646D593, 0xBFBF53EC, 0x6262F89A, 0xE9E9927B, 0xCCCCFF33, 0x51510455, 0x2C2C270B, 0x0D0D4F42, 0xB7B759EE, 0x3F3FF3CC, 0xB2B21CAE, 0x8989EA63, 0x939374E7, 0xCECE7FB1, 0x70706C1C, 0xA6A60DAB, 0x2727EDCA, 0x20202808, 0xA3A348EB, 0x5656C197, 0x02028082, 0x7F7FA3DC, 0x5252C496, 0xEBEB12F9, 0xD5D5A174, 0x3E3EB38D, 0xFCFCC33F, 0x9A9A3EA4, 0x1D1D5B46, 0x1C1C1B07, 0x9E9E3BA5, 0xF3F30CFF, 0xCFCF3FF0, 0xCDCDBF72, 0x5C5C4B17, 0xEAEA52B8, 0x0E0E8F81, 0x65653D58, 0xF0F0CC3C, 0x64647D19, 0x9B9B7EE5, 0x16169187, 0x3D3D734E, 0xA2A208AA, 0xA1A1C869, 0xADADC76A, 0x06068583, 0xCACA7AB0, 0xC5C5B570, 0x9191F465, 0x6B6BB2D9, 0x2E2EA789, 0xE3E318FB, 0xAFAF47E8, 0x3C3C330F, 0x2D2D674A, 0xC1C1B071, 0x59590E57, 0x7676E99F, 0xD4D4E135, 0x7878661E, 0x9090B424, 0x3838360E, 0x7979265F, 0x8D8DEF62, 0x61613859, 0x474795D2, 0x8A8A2AA0, 0x9494B125, 0x8888AA22, 0xF1F18C7D, 0xECECD73B, 0x04040501, 0x8484A521, 0xE1E19879, 0x1E1E9B85, 0x535384D7, 0x00000000, 0x19195E47, 0x5D5D0B56, 0x7E7EE39D, 0x4F4F9FD0, 0x9C9CBB27, 0x49491A53, 0x31317C4D, 0xD8D8EE36, 0x08080A02, 0x9F9F7BE4, 0x828220A2, 0x1313D4C7, 0x2323E8CB, 0x7A7AE69C, 0xABAB42E9, 0xFEFE43BD, 0x2A2AA288, 0x4B4B9AD1, 0x01014041, 0x1F1FDBC4, 0xE0E0D838, 0xD6D661B7, 0x8E8E2FA1, 0xDFDF2BF4, 0xCBCB3AF1, 0x3B3BF6CD, 0xE7E71DFA, 0x8585E560, 0x54544115, 0x868625A3, 0x838360E3, 0xBABA16AC, 0x7575295C, 0x929234A6, 0x6E6EF799, 0xD0D0E434, 0x6868721A, 0x55550154, 0xB6B619AF, 0x4E4EDF91, 0xC8C8FA32, 0xC0C0F030, 0xD7D721F6, 0x3232BC8E, 0xC6C675B3, 0x8F8F6FE0, 0x7474691D, 0xDBDB2EF5, 0x8B8B6AE1, 0xB8B8962E, 0x0A0A8A80, 0x9999FE67, 0x2B2BE2C9, 0x8181E061, 0x0303C0C3, 0xA4A48D29, 0x8C8CAF23, 0xAEAE07A9, 0x3434390D, 0x4D4D1F52, 0x3939764F, 0xBDBDD36E, 0x575781D6, 0x6F6FB7D8, 0xDCDCEB37, 0x15155144, 0x7B7BA6DD, 0xF7F709FE, 0x3A3AB68C, 0xBCBC932F, 0x0C0C0F03, 0xFFFF03FC, 0xA9A9C26B, 0xC9C9BA73, 0xB5B5D96C, 0xB1B1DC6D, 0x6D6D375A, 0x45451550, 0x3636B98F, 0x6C6C771B, 0xBEBE13AD, 0x4A4ADA90, 0xEEEE57B9, 0x7777A9DE, 0xF2F24CBE, 0xFDFD837E, 0x44445511, 0x6767BDDA, 0x71712C5D, 0x05054540, 0x7C7C631F, 0x40405010, 0x6969325B, 0x6363B8DB, 0x2828220A, 0x0707C5C2, 0xC4C4F531, 0x2222A88A, 0x969631A7, 0x3737F9CE, 0xEDED977A, 0xF6F649BF, 0xB4B4992D, 0xD1D1A475, 0x434390D3, 0x48485A12, 0xE2E258BA, 0x979771E6, 0xD2D264B6, 0xC2C270B2, 0x2626AD8B, 0xA5A5CD68, 0x5E5ECB95, 0x2929624B, 0x30303C0C, 0x5A5ACE94, 0xDDDDAB76, 0xF9F9867F, 0x9595F164, 0xE6E65DBB, 0xC7C735F2, 0x24242D09, 0x1717D1C6, 0xB9B9D66F, 0x1B1BDEC5, 0x12129486, 0x60607818, 0xC3C330F3, 0xF5F5897C, 0xB3B35CEF, 0xE8E8D23A, 0x7373ACDF, 0x3535794C, 0x8080A020, 0xE5E59D78, 0xBBBB56ED, 0x7D7D235E, 0xF8F8C63E, 0x5F5F8BD4, 0x2F2FE7C8, 0xE4E4DD39, 0x21216849 };
static uint32_t SM4_SBOX_T3[256] = { 0xD55B5B8E, 0x924242D0, 0xEAA7A74D, 0xFDFBFB06, 0xCF3333FC, 0xE2878765, 0x3DF4F4C9, 0xB5DEDE6B, 0x1658584E, 0xB4DADA6E, 0x14505044, 0xC10B0BCA, 0x28A0A088, 0xF8EFEF17, 0x2CB0B09C, 0x05141411, 0x2BACAC87, 0x669D9DFB, 0x986A6AF2, 0x77D9D9AE, 0x2AA8A882, 0xBCFAFA46, 0x04101014, 0xC00F0FCF, 0xA8AAAA02, 0x45111154, 0x134C4C5F, 0x269898BE, 0x4825256D, 0x841A1A9E, 0x0618181E, 0x9B6666FD, 0x9E7272EC, 0x4309094A, 0x51414110, 0xF7D3D324, 0x934646D5, 0xECBFBF53, 0x9A6262F8, 0x7BE9E992, 0x33CCCCFF, 0x55515104, 0x0B2C2C27, 0x420D0D4F, 0xEEB7B759, 0xCC3F3FF3, 0xAEB2B21C, 0x638989EA, 0xE7939374, 0xB1CECE7F, 0x1C70706C, 0xABA6A60D, 0xCA2727ED, 0x08202028, 0xEBA3A348, 0x975656C1, 0x82020280, 0xDC7F7FA3, 0x965252C4, 0xF9EBEB12, 0x74D5D5A1, 0x8D3E3EB3, 0x3FFCFCC3, 0xA49A9A3E, 0x461D1D5B, 0x071C1C1B, 0xA59E9E3B, 0xFFF3F30C, 0xF0CFCF3F, 0x72CDCDBF, 0x175C5C4B, 0xB8EAEA52, 0x810E0E8F, 0x5865653D, 0x3CF0F0CC, 0x1964647D, 0xE59B9B7E, 0x87161691, 0x4E3D3D73, 0xAAA2A208, 0x69A1A1C8, 0x6AADADC7, 0x83060685, 0xB0CACA7A, 0x70C5C5B5, 0x659191F4, 0xD96B6BB2, 0x892E2EA7, 0xFBE3E318, 0xE8AFAF47, 0x0F3C3C33, 0x4A2D2D67, 0x71C1C1B0, 0x5759590E, 0x9F7676E9, 0x35D4D4E1, 0x1E787866, 0x249090B4, 0x0E383836, 0x5F797926, 0x628D8DEF, 0x59616138, 0xD2474795, 0xA08A8A2A, 0x259494B1, 0x228888AA, 0x7DF1F18C, 0x3BECECD7, 0x01040405, 0x218484A5, 0x79E1E198, 0x851E1E9B, 0xD7535384, 0x00000000, 0x4719195E, 0x565D5D0B, 0x9D7E7EE3, 0xD04F4F9F, 0x279C9CBB, 0x5349491A, 0x4D31317C, 0x36D8D8EE, 0x0208080A, 0xE49F9F7B, 0xA2828220, 0xC71313D4, 0xCB2323E8, 0x9C7A7AE6, 0xE9ABAB42, 0xBDFEFE43, 0x882A2AA2, 0xD14B4B9A, 0x41010140, 0xC41F1FDB, 0x38E0E0D8, 0xB7D6D661, 0xA18E8E2F, 0xF4DFDF2B, 0xF1CBCB3A, 0xCD3B3BF6, 0xFAE7E71D, 0x608585E5, 0x15545441, 0xA3868625, 0xE3838360, 0xACBABA16, 0x5C757529, 0xA6929234, 0x996E6EF7, 0x34D0D0E4, 0x1A686872, 0x54555501, 0xAFB6B619, 0x914E4EDF, 0x32C8C8FA, 0x30C0C0F0, 0xF6D7D721, 0x8E3232BC, 0xB3C6C675, 0xE08F8F6F, 0x1D747469, 0xF5DBDB2E, 0xE18B8B6A, 0x2EB8B896, 0x800A0A8A, 0x679999FE, 0xC92B2BE2, 0x618181E0, 0xC30303C0, 0x29A4A48D, 0x238C8CAF, 0xA9AEAE07, 0x0D343439, 0x524D4D1F, 0x4F393976, 0x6EBDBDD3, 0xD6575781, 0xD86F6FB7, 0x37DCDCEB, 0x44151551, 0xDD7B7BA6, 0xFEF7F709, 0x8C3A3AB6, 0x2FBCBC93, 0x030C0C0F, 0xFCFFFF03, 0x6BA9A9C2, 0x73C9C9BA, 0x6CB5B5D9, 0x6DB1B1DC, 0x5A6D6D37, 0x50454515, 0x8F3636B9, 0x1B6C6C77, 0xADBEBE13, 0x904A4ADA, 0xB9EEEE57, 0xDE7777A9, 0xBEF2F24C, 0x7EFDFD83, 0x11444455, 0xDA6767BD, 0x5D71712C, 0x40050545, 0x1F7C7C63, 0x10404050, 0x5B696932, 0xDB6363B8, 0x0A282822, 0xC20707C5, 0x31C4C4F5, 0x8A2222A8, 0xA7969631, 0xCE3737F9, 0x7AEDED97, 0xBFF6F649, 0x2DB4B499, 0x75D1D1A4, 0xD3434390, 0x1248485A, 0xBAE2E258, 0xE6979771, 0xB6D2D264, 0xB2C2C270, 0x8B2626AD, 0x68A5A5CD, 0x955E5ECB, 0x4B292962, 0x0C30303C, 0x945A5ACE, 0x76DDDDAB, 0x7FF9F986, 0x649595F1, 0xBBE6E65D, 0xF2C7C735, 0x0924242D, 0xC61717D1, 0x6FB9B9D6, 0xC51B1BDE, 0x86121294, 0x18606078, 0xF3C3C330, 0x7CF5F589, 0xEFB3B35C, 0x3AE8E8D2, 0xDF7373AC, 0x4C353579, 0x208080A0, 0x78E5E59D, 0xEDBBBB56, 0x5E7D7D23, 0x3EF8F8C6, 0xD45F5F8B, 0xC82F2FE7, 0x39E4E4DD, 0x49212168 };
static uint32_t rotl(uint32_t a, uint8_t n) { return (a << n) | (a >> (32 - n)); }
static uint32_t rotr(uint32_t a, uint8_t n) { return (a >> n) | (a << (32 - n)); }
static uint32_t load_u32_be(const uint8_t *b, uint32_t n) { return ((uint32_t)b[4 * n] << 24) | ((uint32_t)b[4 * n + 1] << 16) | ((uint32_t)b[4 * n + 2] << 8) | ((uint32_t)b[4 * n + 3]); }
static void store_u32_be(uint32_t v, uint8_t *b) { b[0] = (uint8_t)(v >> 24); b[1] = (uint8_t)(v >> 16); b[2] = (uint8_t)(v >> 8); b[3] = (uint8_t)(v); }
static uint32_t SM4_T_non_lin_sub(uint32_t X) { uint32_t t = 0;
t |= ((uint32_t)SM4_S[(uint8_t)(X >> 24)]) << 24; t |= ((uint32_t)SM4_S[(uint8_t)(X >> 16)]) << 16; t |= ((uint32_t)SM4_S[(uint8_t)(X >> 8)]) << 8; t |= SM4_S[(uint8_t)X];
return t; }
static uint32_t SM4_T_slow(uint32_t X) { uint32_t t = SM4_T_non_lin_sub(X);
return t ^ rotl(t, 2) ^ rotl(t, 10) ^ rotl(t, 18) ^ rotl(t, 24); }
static uint32_t SM4_T(uint32_t X) { return SM4_SBOX_T0[(uint8_t)(X >> 24)] ^ rotr(SM4_SBOX_T0[(uint8_t)(X >> 16)], 8) ^ rotr(SM4_SBOX_T0[(uint8_t)(X >> 8)], 16) ^ rotr(SM4_SBOX_T0[(uint8_t)X], 24); }
static uint32_t SM4_key_sub(uint32_t X) { uint32_t t = SM4_T_non_lin_sub(X);
return t ^ rotl(t, 13) ^ rotl(t, 23); }
int ossl_sm4_set_key(const uint8_t *key, SM4_KEY *ks) {
static const uint32_t FK[4] = { 0xa3b1bac6, 0x56aa3350, 0x677d9197, 0xb27022dc};
static const uint32_t CK[32] = { 0x00070E15, 0x1C232A31, 0x383F464D, 0x545B6269, 0x70777E85, 0x8C939AA1, 0xA8AFB6BD, 0xC4CBD2D9, 0xE0E7EEF5, 0xFC030A11, 0x181F262D, 0x343B4249, 0x50575E65, 0x6C737A81, 0x888F969D, 0xA4ABB2B9, 0xC0C7CED5, 0xDCE3EAF1, 0xF8FF060D, 0x141B2229, 0x30373E45, 0x4C535A61, 0x686F767D, 0x848B9299, 0xA0A7AEB5, 0xBCC3CAD1, 0xD8DFE6ED, 0xF4FB0209, 0x10171E25, 0x2C333A41, 0x484F565D, 0x646B7279 };
uint32_t K[4]; int i;
K[0] = load_u32_be(key, 0) ^ FK[0]; K[1] = load_u32_be(key, 1) ^ FK[1]; K[2] = load_u32_be(key, 2) ^ FK[2]; K[3] = load_u32_be(key, 3) ^ FK[3];
for (i = 0; i < SM4_KEY_SCHEDULE; i = i + 4) { K[0] ^= SM4_key_sub(K[1] ^ K[2] ^ K[3] ^ CK[i]); K[1] ^= SM4_key_sub(K[2] ^ K[3] ^ K[0] ^ CK[i + 1]); K[2] ^= SM4_key_sub(K[3] ^ K[0] ^ K[1] ^ CK[i + 2]); K[3] ^= SM4_key_sub(K[0] ^ K[1] ^ K[2] ^ CK[i + 3]); ks->rk[i] = K[0]; ks->rk[i + 1] = K[1]; ks->rk[i + 2] = K[2]; ks->rk[i + 3] = K[3]; }
return 1; }
#define SM4_RNDS(k0, k1, k2, k3, F) \ do \ { \ B0 ^= F(B1 ^ B2 ^ B3 ^ ks->rk[k0]); \ B1 ^= F(B0 ^ B2 ^ B3 ^ ks->rk[k1]); \ B2 ^= F(B0 ^ B1 ^ B3 ^ ks->rk[k2]); \ B3 ^= F(B0 ^ B1 ^ B2 ^ ks->rk[k3]); \ } while (0)

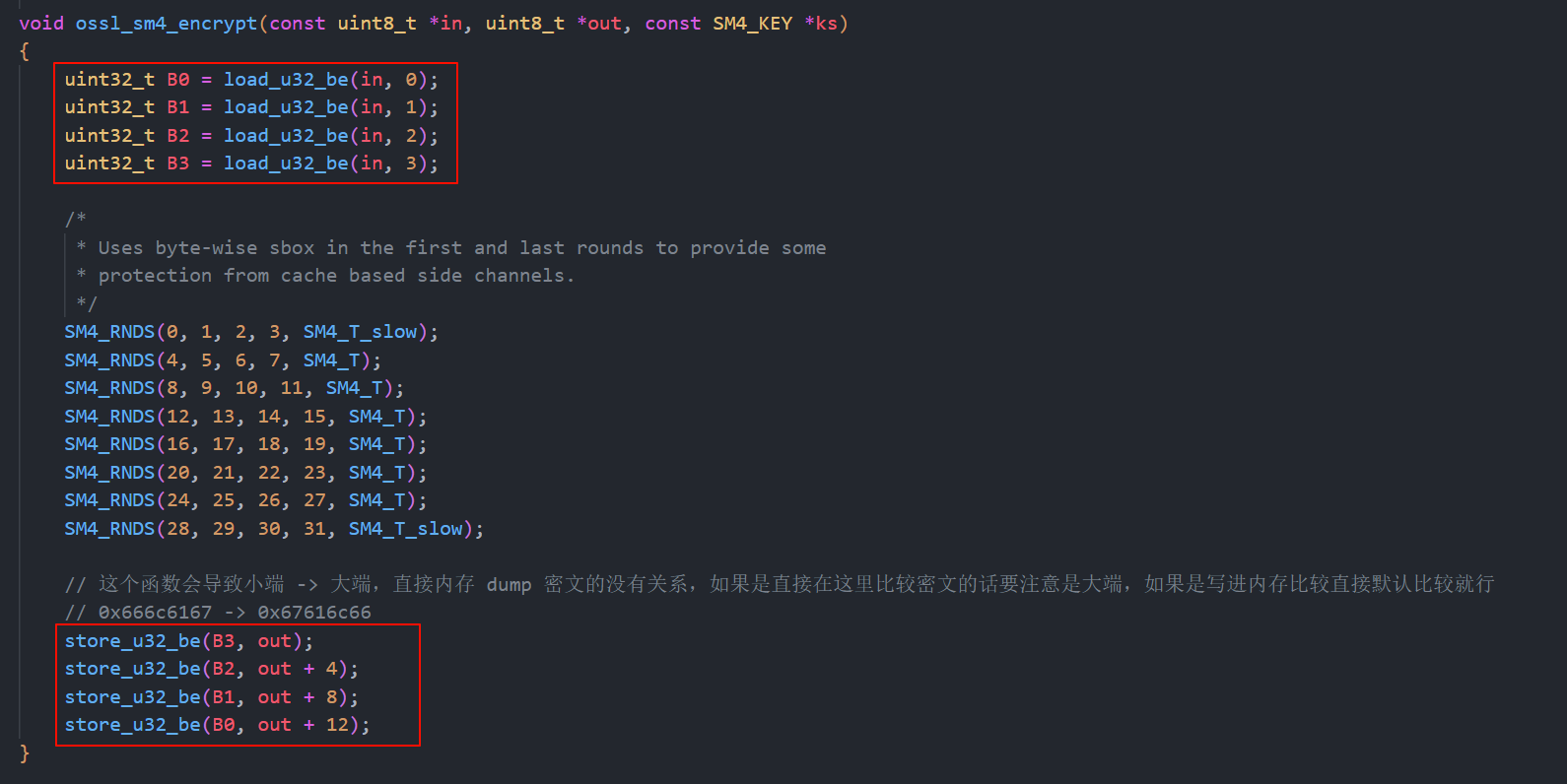

void ossl_sm4_encrypt(const uint8_t *in, uint8_t *out, const SM4_KEY *ks) { uint32_t B0 = load_u32_be(in, 0); uint32_t B1 = load_u32_be(in, 1); uint32_t B2 = load_u32_be(in, 2); uint32_t B3 = load_u32_be(in, 3);
SM4_RNDS(0, 1, 2, 3, SM4_T_slow); SM4_RNDS(4, 5, 6, 7, SM4_T); SM4_RNDS(8, 9, 10, 11, SM4_T); SM4_RNDS(12, 13, 14, 15, SM4_T); SM4_RNDS(16, 17, 18, 19, SM4_T); SM4_RNDS(20, 21, 22, 23, SM4_T); SM4_RNDS(24, 25, 26, 27, SM4_T); SM4_RNDS(28, 29, 30, 31, SM4_T_slow);
store_u32_be(B3, out); store_u32_be(B2, out + 4); store_u32_be(B1, out + 8); store_u32_be(B0, out + 12); }
void ossl_sm4_decrypt(const uint8_t *in, uint8_t *out, const SM4_KEY *ks) { uint32_t B0 = load_u32_be(in, 0); uint32_t B1 = load_u32_be(in, 1); uint32_t B2 = load_u32_be(in, 2); uint32_t B3 = load_u32_be(in, 3);
SM4_RNDS(31, 30, 29, 28, SM4_T_slow); SM4_RNDS(27, 26, 25, 24, SM4_T); SM4_RNDS(23, 22, 21, 20, SM4_T); SM4_RNDS(19, 18, 17, 16, SM4_T); SM4_RNDS(15, 14, 13, 12, SM4_T); SM4_RNDS(11, 10, 9, 8, SM4_T); SM4_RNDS(7, 6, 5, 4, SM4_T); SM4_RNDS(3, 2, 1, 0, SM4_T_slow);
store_u32_be(B3, out); store_u32_be(B2, out + 4); store_u32_be(B1, out + 8); store_u32_be(B0, out + 12); }
void printHex(char *name, void *ptr, int len) { printf("%s", name); for (size_t i = 0; i < len; i++) printf("%02x", ((uint8_t *)ptr)[i]); printf("\n"); }
void hexdump(char *name, const void *data, size_t size) { const unsigned char *byte_data = (const unsigned char *)data; size_t i, j;
printf("%s\n", name);
for (i = 0; i < size; i += 16) { printf("%08zx ", i);
for (j = 0; j < 16; ++j) { if (i + j < size) { printf("%02x ", byte_data[i + j]); } else { printf(" "); }
if (j == 7) { printf(" "); } }
printf(" |");
for (j = 0; j < 16; ++j) { if (i + j < size) { unsigned char ch = byte_data[i + j]; printf("%c", isprint(ch) ? ch : '.'); } else { printf(" "); } }
printf("|\n"); } }
int main() { SM4_KEY *ks = (SM4_KEY *) malloc(sizeof(SM4_KEY));
uint32_t encrypted[4] = {0x9edc0fb, 0xe0e9cd2f, 0xe1f9332, 0x23932149};
uint8_t input[16] = {0x09,0xed,0xc0,0xfb,0xe0,0xe9,0xcd,0x2f,0x0e,0x1f,0x93,0x32,0x23,0x93,0x21,0x49}; uint8_t output[16];
uint8_t RK_tmp[128] = { 0xec,0x2d,0x4d,0x4c,0xa1,0xb4,0x66,0x8a,0x26,0x99,0x82,0x5f,0xf6,0x49,0x30,0x07,0x9a,0x75,0x75,0xf1,0x95,0x97,0x21,0x55,0x5e,0x47,0xfc,0xd4,0xb7,0x4f,0xd5,0x42,0xfd,0xc9,0x15,0xfe,0x20,0x36,0x76,0xf6,0x4c,0x99,0xc2,0x2b,0xb4,0xff,0x23,0x45,0x36,0xa1,0x1d,0x7c,0x2a,0x13,0x26,0x47,0x67,0x28,0xf0,0xc0,0xa1,0xa5,0xd2,0x61,0xcf,0x73,0x58,0xc6,0x94,0x5e,0x43,0x6c,0x70,0xdc,0xe8,0xfb,0xe0,0xb1,0x13,0xd7,0xa1,0x22,0x73,0xae,0xe1,0xe2,0xb1,0x55,0x25,0x78,0xb6,0x8c,0xbb,0x63,0xd7,0xd1,0xb2,0x18,0x2a,0x91,0x52,0x10,0xc1,0x1f,0x32,0x6a,0x97,0xb2,0x10,0xe5,0xa8,0x6a,0xbe,0xec,0x21,0xa9,0x9b,0x36,0xd9,0x46,0x95,0xa6,0xc2,0x94,0x72,0x4f,0x94,0xfa }; memcpy(ks->rk, RK_tmp, 128);
ossl_sm4_decrypt(input, output, ks);
hexdump("Output", output, 16);
return 0; }
|
